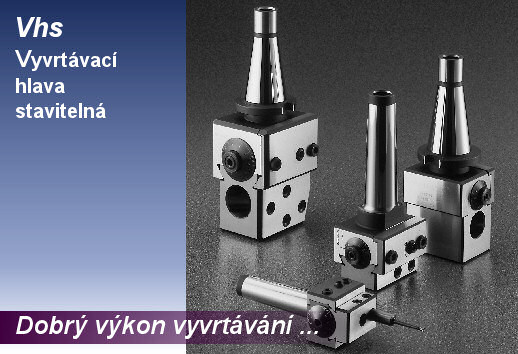

Vhs - vyvrtávací hlava stavitelná NAREX
205bh - Fine boring head NAREX
205bh - Fine boring head NAREX

Favourable actions here ...

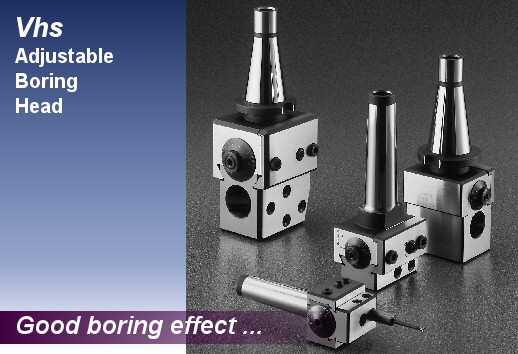

Product description Vhs - Adjustable boring head


Vhs - legend

Vhs - legend

1 - body

2 - slide

3 - screw with scale

4 - locking bolt of slide

5 - locking bolt of boring tool

VK - exchangeable taper shank type VK360 and VK801

Accuracy of adjustment

  • Vhs 5-50 and Vhs 10-125

  • Vhs 40-180

Basic operation

  • boring of the holes with accuracy IT7

Enlargement of possibilities

  • For Vhs 10-125 can be used set of boring tools VDSK 25mm or individual boring tools for Vhu

  • For Vhs 40-180 can be used set of boring tools VDSK 32 mm or individual boring tools for Vhu


Vhs – adjustable boring heads are used for precision boring of cylindrical holes on boring machines or on the other machine tools. They can be used on CNC machines with automatic exchange of the tool as well. Taper shanks type VK360 (for Vhs 5-50 and Vhs 10-125) and taper shank VK801 (for Vhs 40-180) are exchangeable – they aren't part of the head's body.

Clamping holes in slide are circular or combined for clamping of circular or four-edged tool's body profile. Adjustable boring heads Vhs are delivered in wooden boxes with basic accessories. For enlargement of boring possibilities can be delivered sets of boring tools VDSK 25 (for Vhs 10-125) and VDSK 32 (for Vhs 40-180).

Body (1) is the basic of the head. It is settled by the flange for clamping of exchangeable taper shank VK360 or VK801 (Vhs 40-180). In the bottom of the body is crossways given slide (2). Slide position against the body is adjusted by locking bolt (4). Screw with scale (3) is for dimension adjusting. By its turning is slide (2) shifted. By turning screw with scale (3) for one division slide shifts for 0,005 let us say diameter of boring hole is extended for 0,001mm for Vhs 5-50 and Vhs 10-125.
